Product Information

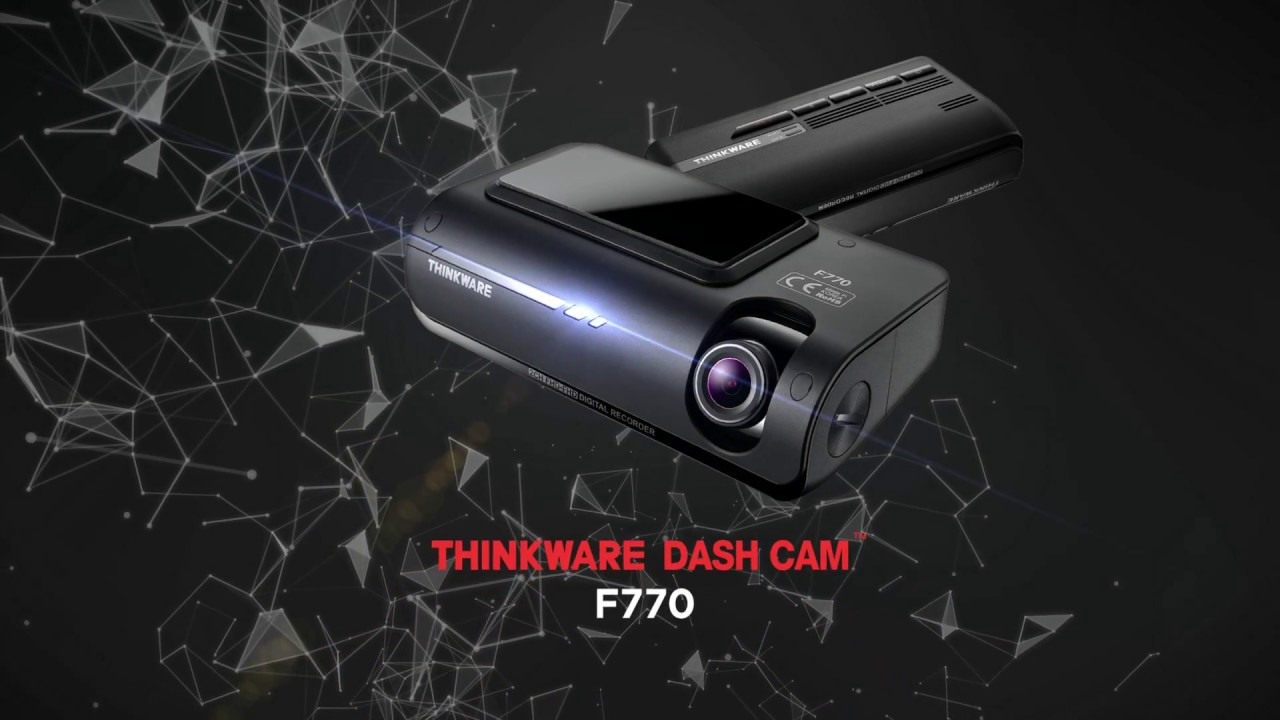

F770

The F770 camera from Thinkware offers top of the range capabilities. The F770 also incorporates new features including ‘Super Night Vision’, a night image correction feature, and ‘Time Lapse’ that dramatically extends the parked recording hours. This model comes with a low profile and discreet shape with a fully matte black finish. The F770 features a 1080p Full HD front-facing camera and an optional 1080p Full HD rear-facing camera. Available as Plug & Play or Hardwired.

Super night vision

Videos recorded by a dash cam in a low light environment such as a dark alleyway or underground parking lot can pose difficulties when you try to accurately identify information from the image. SUPER NIGHT VISION employs the new ISP (Image Signal Processing) technology and the real-time image processing function to bring 10 times brighter images than our earlier models when recorded under nighttime parking mode.

Time lapse

Important clips and images may get deleted due to insufficient memory space during long continuous recordings, especially in standard parking recording mode which requires large memory for saving 15 to 30 frames per second. TIME LAPSE MODE in the F770 records 1 frame per second reducing the size of the video file. This allows video recordings in parking mode to continue up to 16 times longer than other dash cams

*Parking recording mode can be activated upon installing the F770 with the hardwiring cable provided.

Safety camera alert

The THINKWARE DASH CAM F770's internal GPS provides accurate location information while the Safety Camera Alert function is on continuous alert to warn the driver of red lights and traffic enforcement cameras.

• RED LIGHT WARNING SYSTEM
• SPEED CAMERA WARNING SYSTEM
• RED LIGHT & SPEED CAMERA WARNING SYSTEM
• AVERAGE SPEED WARNING SYSTEM
• MOBILE ZONE WARNING SYSTEM
• ROAD SAFETY WARNING SYSTEM

Built-in Wi-Fi

You can easily control, manage files and configure the settings of your DASH CAM from your smart device with THINKWARE DASH CAM Mobile Viewer App. With the THINKWARE DASH CAM Mobile app and the built-in Wi-Fi, the F770 allows you a convenient viewing of real-time recordings as well as downloading, accessing, or deleting recorded videos on your mobile phone.

Specification

• Resolution :
  • Front – Full HD (1920 x 1080)
  •  Rear – Full HD (1920 x 1080) [Optional]
• Camera :
  •    Front – 2.19MP Sony Exmor CMOS
  •    Rear – 2.19MP Sony Exmor CMOS [Optional]
• Frame Rate : 30 fps
• Viewing Angle: 140° (Diagonal)
• Weight : 125.8g (0.277 lb)
• Storage Temperature :   -20°~ 70°C (-4°~ 158°F)
• Operating Temperature :   -10°~ 60°C (14°~ 140°F)
• Capacity :   MicroSD card 32/64GB (UHS-I)
• Input Power :  DC 12/24V, Built-in Super Capacitor
• GPS :  Built-in GPS Antenna

What's Included

• Dash Cam
• Hardwire Cable
• MicroSD Card
• USB MicroSD Card Reader
• Windshield Mount
• Spare 3M Mounting Tapes
• Adhesive Cable Clips
• Quick Start Guide

(Plug & Play 12 Power Cable Sold Separately. Search TWCigar)
