Product Information

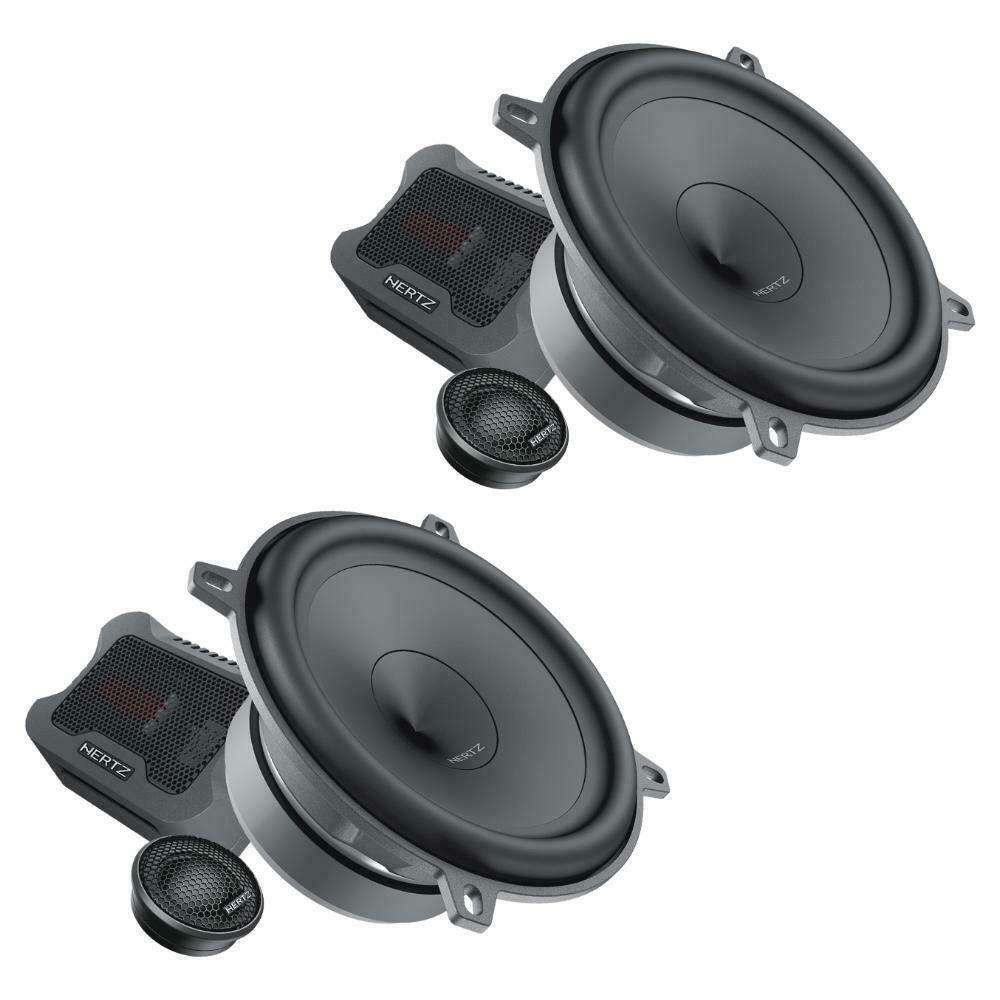

The MP 165P.3 woofer electroacoustic parameters have been forged to give it the pure and solid sound of an authentic mid-bass, designed for high dynamic systems. The MPK 165P.3 timbre balance is entrusted to the MPCX 2P.3 crossover featuring a copper inductor with a 1 mm diameter wire to filter the MP 165P.3, which, with its nominal 3 Ω requires high impulse currents. The tweeter MP 25.3 12dB/Octave crossover is built with extremely high quality 160V bi-metallized polyester film capacitor and an air coil inductor. The tweeter (MP 25.3) level control (0/+2.5dB) provides the ability to adapt the system response to the listener preferences and considering the components installation position.

• Power Handling - Peak W    230
• Power Handling - Continuous W    115
• Impedance Ω    3
• Frequency response Hz    45 ÷ 22,5k
• Sensitivity dB SPL    93
• Voice coil Ø mm (in.)    25 (1)
• Woofer size mm (in.)    165 (6.5)
• Tweeter size mm (in.)    29 (1.14)
• Woofer magnet    High density flux ferrite
• Tweeter magnet    Neodymium
• Woofer cone    Pressed-pulp cone with cotton fibers
• Tweeter dome    Tetolon
• Crossover type    2 Way Passive Crossover
• Crossover cut off    4 kHz

Specification

What's Included

• Hertz MPK 165P.3 PRO
