Product Information

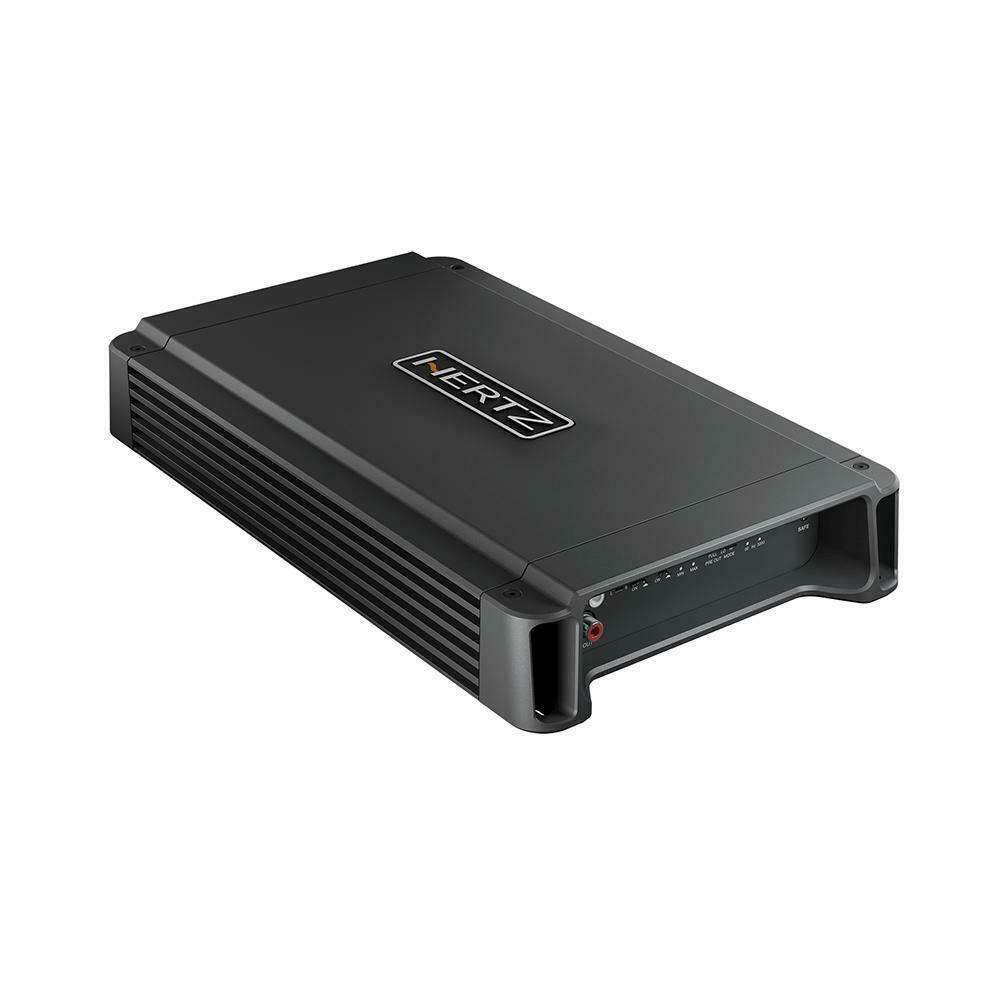

The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.

• Channel mode    5 - 3
• Output Power (RMS) @ 14.4 VDC    5 Ch 70 W x 4 + 380 W x 1 (4Ω) 5 Ch 100 W x 4 + 550 W x 1 (2Ω) 3 Ch 200 W x 2 (4Ω) + 380 W x 1 (4Ω) 3 Ch 200 W x 2 (4Ω) + 550 W x 1 (2Ω)
• Filters Hi-Pass Lo-Pass Band-Pass
• A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. - B Ch: 80 ÷ 3.3k Hz @ 12 dB/Oct.
• C Ch: 40 ÷ 500 Hz @ 24 dB/Oct.
• A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. - 80 ÷ 3.3k Hz (LO) @ 12 dB/Oct.
• Distortion - THD  (100Hz @ 4Ω)    0.08 %
• S/N Ratio  (A weighted @ 1V)    100 dB A & B Ch - 106 dB C Ch
• Damping factor  (100Hz @ 4Ω)    50 A & B Ch - 90 C Ch
• Size W x D x H  mm (in.)    170 x 349 x 46.70 - (6.69' x 13.74' x 1.84')

Specification

What's Included

• ML Power 5 amplifier
• Quick Start Guide
• Warranty Card
• 40 A blade fuse
• 4,2 x 16 mm self-tapping, cross-headed fixing screws.
