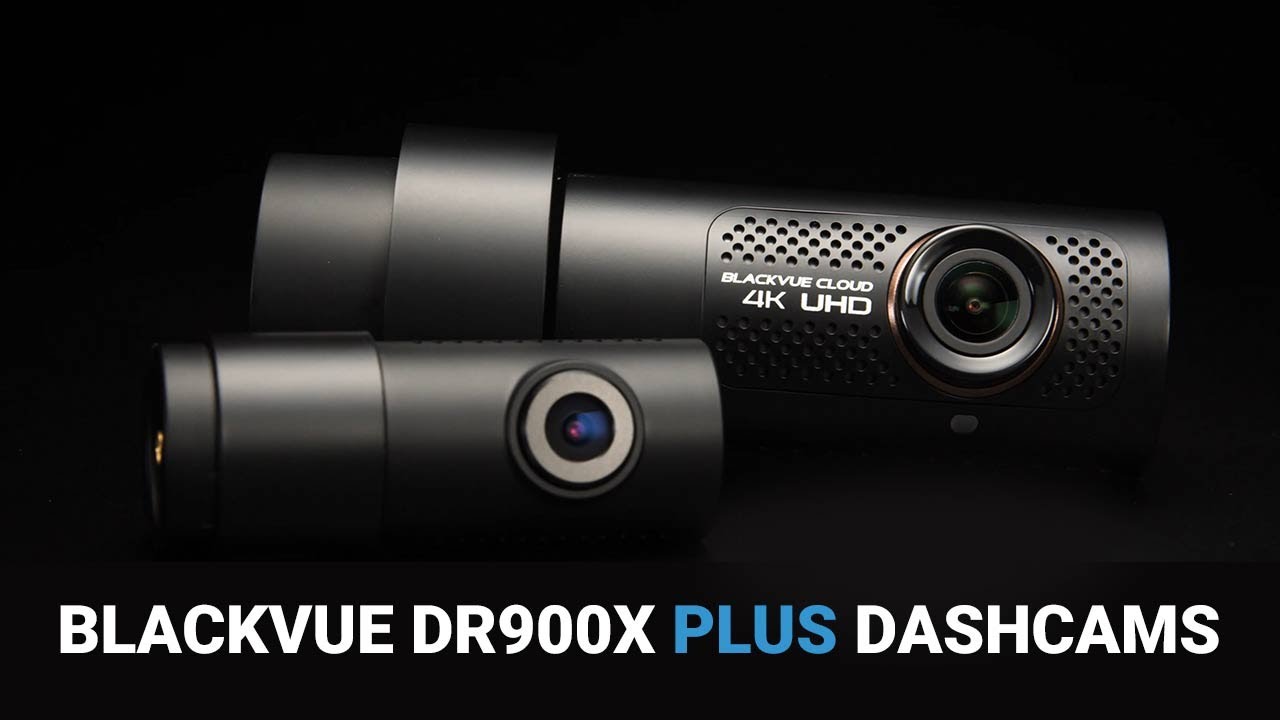

PLUS Improved Sony STARVIS Sensor

The Sony STARVIS™ image sensor that equips the DR900X Plus Series front and rear cameras delivers outstanding low-light performance.

The back-illuminated sensor is capable of capturing an unprecedented amount of detail in both shadows and highlights.

DR900X-2CH SEE MORE

Utilising video technology rated the best in the business, the DR900X sets a new industry standard.

The DR900X-2CH has an ultra-wide 162° viewing angle, broadcast standard HEVC video compression, dual-band 2.4-5GHz Wi-Fi and Night Vision courtesy of its 8-megapixel CMOS camera sensor.

• 4K UHD
• 2 Channel
• CLOUD
• 162°/139°
• 4G READY
• Wi-Fi/GPS

The DR900X-2CH is also compatible with BlackVue Cloud – a unique suite of LIVE app-based features that remotely connecting you with your vehicle, providing additional functionality including Live View, Video Backup, Realtime Tracking and Emergency Notifications.

4K VIDEO

BlackVue is a global leader and innovator in the field of in-car video technology and has always put image quality at the forefront of their product development.

The DR900X-2CH is BlackVue’s range-topping dual camera model, engineered for the user who demands the finest video quality day and night. Featuring a 4K UHD front camera with 8-megapixel CMOS sensor and Full HD 1080p rear camera with Sony STARVIS CMOS sensor for superb clarity.

The 4K Ultra High Definition resolution contains exactly four times as many pixels as Full HD, 3840 pixels × 2160 lines to be exact, equivalent to 8.3 million pixels.

This can mean the difference between a pixelated blur and a readable licence plate, especially at speed or in low light conditions. To take even greater advantage of the extra resolution, the DR900X-2CH includes an ultra-wide 162° lens on its front camera for incredible clarity and detail from edge-to-edge. The DR900X-2CH performs exceptionally well at night and in dark environments, while maintaining a low level of noise.

During daylight, and thanks to a high shutter speed, the DR900X’s ability to freeze the action is invaluable, capturing crucial details even in adjacent lanes at the edges of the screen.

4K UHD 8 MEGAPIXEL CMOS

The DR900X utilises industry-leading video technology, rated best on the market by Auto Express magazine for two consecutive years.

The DR900X-2CH features a 8.0 megapixel sensor and ultra-wide 162° viewing angle to take full advantage of the 4K UHD resolution – four times as many pixels as Full HD.

The DR900X-1CH performs exceptional well at speed or in dark or low light environments, while maintaining a low level of visual ’noise’.

4K ULTRA HD

Stunning 4K Ultra HD resolution from 8-megapixel CMOS sensor. Ultra-wide 162° viewing angle.

CLOUD CONNECTED

Compatible with BlackVue Cloud, connect with your vehicle remotely via the BlackVue app and view LIVE video, download clips etc.

4G LTE

Add the optional CM100LTE 4G connectivity module for always-on connection to BlackVue Cloud and it’s unique LIVE features.

2 CHANNEL

With a 4K UHD front camera and Full HD with STARVIS at the rear, the DR900X-2CH offers exceptional day and night performance.

PARKING MODE

The DR900X-2CH protects your vehicle even when you’re not around, thanks to BlackVue’s unique Intelligent Parking Mode.

APP CONTROL

The BlackVue app for iOS & Android provides access the your dash cam’s settings, video files and LIVE BlackVue Cloud features.

GPS & DUAL BAND WIFI

Built-in GPS adds optional location and speed data overlay to recordings while dual-band Wi-Fi provides wireless connection to smartphones.

• Model Name    DR900X-2CH 4K UHD DASHCAM
• Channel    2CH
• Highlights    4K UHD (Front) + Full HD (Rear), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional)
• Product Dimensions    Front:  W 118.5 mm (4.67″) x H 36 mm (1.42″) / 106 g (3.74 oz) Rear: W  67.4 mm (2.65″) x H 25 mm (0.98″) / 25 g (0.88 oz)
• Rear Camera Connection    Coaxial cable
• Memory Support    microSD card up to 256GB
• Recording Modes    – Normal, – Event (Impact Detection / Speed Limit / Manual), – Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
• Parking Mode    YES (with 3-wire hardwiring cable – included)
• Parking Mode Event Voice Notifications    YES
• Imaging Sensor    Front: 8MP CMOS Sensor Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
• Viewing Angle    Front: Diagonal 162°, Horizontal 136°, Vertical 77° Rear: Diagonal 139°, Horizontal 116°, Vertical 61°
• Resolution Frame Rate    Front / Rear -4K UHD (3840×2140) @30fps (Extreme) / Full HD (1920×1080) @30fps -4K UHD (3840×2140) @30fps / Full HD (1920×1080) @30fps -Full HD (1920×1080) @60fps / Full HD (1920×1080) @30fps -Full HD (1920×1080) @30fps / Full HD (1920×1080) @30fps
• Video Codec    H.264 (AVC)
• Image Quality and Bitrate Front/Rear    Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps
• Format Free    YES (Adaptive)
• Event File Overwrite Protection    YES (up to 50)
• SD Card Failure Alert    YES
• Scheduled Reboot    YES
• Video File Extension    MP4
• Wi-Fi    Built-in (802.11 a.b.g.n.ac)
• Cloud Compatible    YES
• GPS    Built-in (Dual Band : GPS, GLONASS)
• Microphone    Built-in
• Speaker    Built-in
• Impact Sensor    3-Axis Acceleration Sensor
• LED Indicators
• Front: Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED Rear: Rear Security LED
• Button    Button: Wi-Fi ON/OFF (Tap) Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
• Operation Temperature    20 °C − 70 °C (-4 °F − 158 °F) Storage Temperature    -20 °C − 90 °C (-4 °F − 194 °F )
• High Temp Cut Off    Approx. 75℃ (167°F)
• Backup Battery    Built-in supercapacitor
• Input Power    DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
• Power Consumption Hour    Normal Mode (WiFi On / GPS On / 2CH) : 450mA / hour Normal Mode (WiFi Off / GPS On / 2CH) : 410mA / hour Parking Mode (WiFi On / GPS Off / 2CH) : 365mA / hour Parking Mode (WiFi Off / GPS Off / 2CH) : 325mA / hour * Actual power consumption may vary depending on use conditions and environment.
• Certifications    Front: FCC, CE, RoHS, Telec, WEEE, IC Rear: FCC, CE, RoHS, WEEE
• Software    BlackVue Viewer * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher
• Application    BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
• Others    Adaptive Format-Free File Management System
• LTE    External (Optional)

• Front Camera
• Rear Camera
• 32GB Card
• Rear camera connection cable (6m / 19.68ft)
• Hardwiring power cable
• Cigarette lighter power cable
• 32GB microSD card
• microSD card reader
• Quick start guide
• Cable clips (8EA)
• Double-sided tape for the Mounting Brackets
• Pry tool
